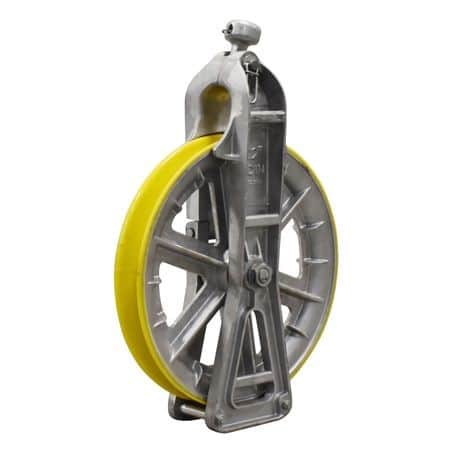

Standard Stringing Block, 22″
DDIN Transmission Stringing Blocks are constructed of high-strength aluminum alloy, making them lightweight, strong, and durable. The urethane-lined sheaves prevent damage to the conductor and the anti-friction ball bearings packed with synthetic aviation grease make these blocks resistant to extreme conditions.
- Constructed of aluminum alloy, lightweight and durable
- Urethane lined sheave
- Anti-friction bearings packed with synthetic aviation grease
- Lifting bars located at the center and at the bottom of the blocks
- Large throat opening allows for the passage of most sleeves and connectors
| Weight | 52 lbs |
|---|---|
| Sheave Diameter | 22" |
| Throat Width | 3-1/8" |
| Throat Depth | 5-5/8" |
| Overall Length | 31-9/16" |
| Maximum Sheave Width | 2" |
| WLL | 12,000lbs |
