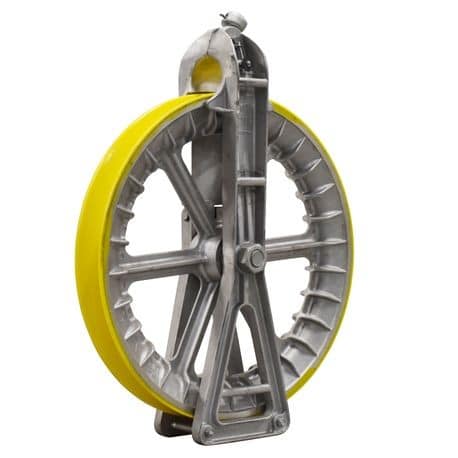

Wide Stringing Block, 36″
DDIN Wide Stringing Blocks are constructed of high-strength aluminum alloy, making them lightweight, strong, and durable. The urethane lined sheaves prevent damage to the conductor and the anti-friction ball bearings packed with synthetic aviation grease make these blocks resistant to extreme conditions.
- A wider version of the Standard Block
- “V-Groove” urethane lined wide-throat sheave
- Designed to improve the installation of T2® and VR2® conductors
- Constructed of aluminum alloy; lightweight and durable
- Anti-friction bearings packed with synthetic aviation grease
- Lifting bars located at the center and at the bottom of the blocks
| Weight | 144 lbs |
|---|---|
| Sheave Diameter | 36" |
| Throat Width | 5" |
| Throat Depth | 6-1/2" |
| Overall Length | 47-1/4" |
| Maximum Sheave Width | 3-5/8" |
| WLL | 12,000lbs |
